CNC Corner Cleaning Machine

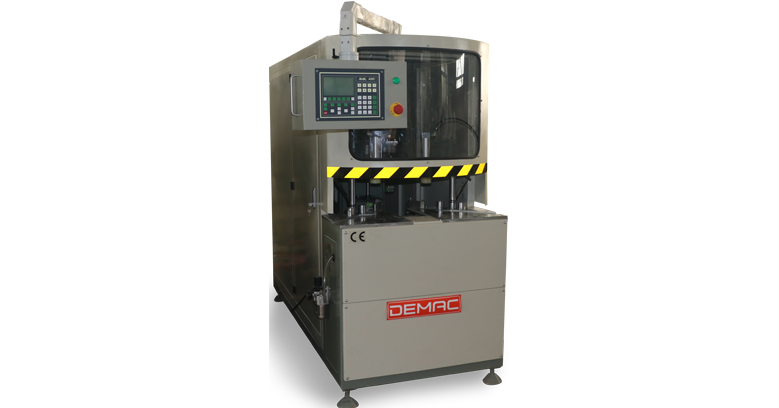

CNC Corner Cleaning Machine         ACC-CNC-120

Features

1.For profile welding seam cleaning
2.High processing precision due to size error compensation function
3.Imported servo-drive system, computer control system, solenoid valve, air source disposer and so on, ensured reliable performance and long using life
4.Can store many programs for various profile processing
5.Can clean multi-shaped welding seams
6. Two axis computer control system
7. Can clean outside vertical surface, up/bottom welding seam and seal rubber groove part

Parameter:

Air Pressure: 0.5～0.8MPa
Air Consumption: 60L/min
Input Voltage: 380V 50HZ
Input Power:2.8Kw
Milling Cutter Revolution: 2800r/min
Profile Height:30～120mm
Profile Width:20～120mm
Overall Dimension:1800×1050×1800mm
