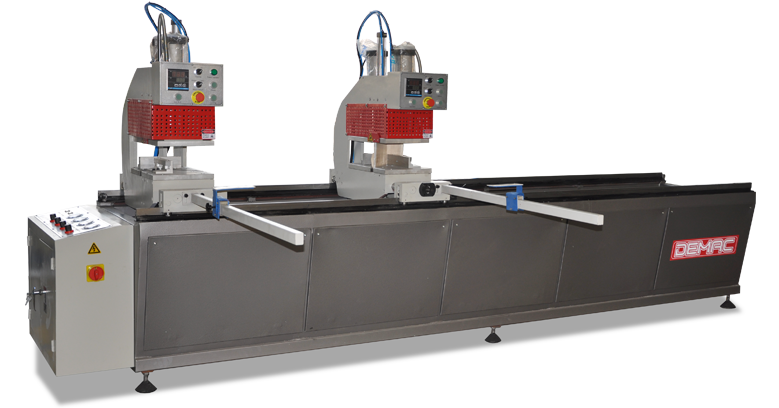

Two Head Welding Machine

Two Head Welding Machine       HW2-120

Features:

1.PLC controls the welding action / program, high reliability
2.Machine heads can work separately or jointly
3.Free angle welding of right machine head
4.Parameters can be set to meet various profiles' processing requirements
5.High welding precision
6.Imported PLC and other main electric components.
7.Good welding corner

Parameter:

Operation Air Pressure:0.5～0.8 MPa
Air Consumption:40L/min
Input Voltage:220V 50Hz
Input Power:2.5 kw
Welding Height:20～120 mm
Welding Width:120 mm
Welding Range:400～3500 mm
Overall Dimension:4600×1100×2100mm
