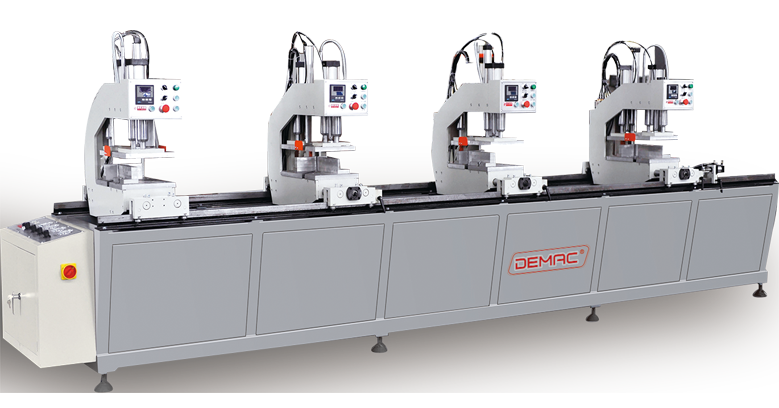

Four Head Welding Machine

Four Head Welding Machine        HW4-120

Features:

1. PLC controls the welding action / program, high reliability
2. Machine heads can work separately or jointly
3. Free angle welding of right machine head
4. Parameters can be set to meet various profiles' processing requirements
5. High welding precision
6. Imported PLC and other main electric components.
7. Good welding corner appearance

Parameter:

Operation Air Pressure:0.5～0.8MPa
Air Consumption:200L/min
Input Voltage:220V 50Hz
Input Power:4.5kw
Welding Height: 20～120mm
Welding Width: 120mm
Welding Range:400～4500mm
Overall Dimension: 5600×1100×2100mm
