Four Head Seamless Welding Machine

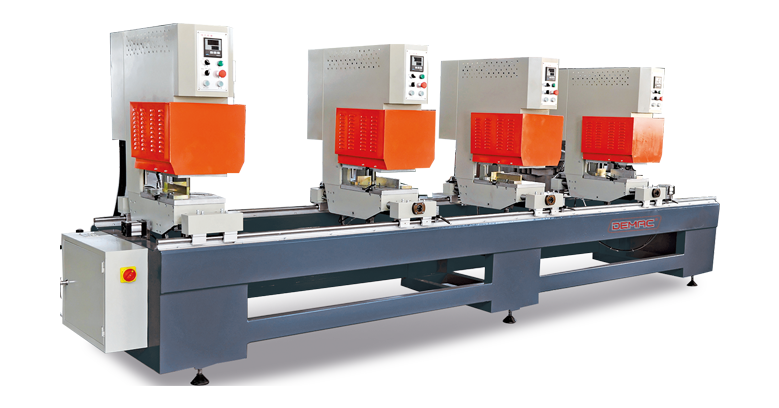

Four Head Seamless Welding Machine       HWS4-120

Function

1) Used for white profile and colored profile corner welding. The welding process will be finished automatically after the operator puts on the profile and presses the automatic running button
2) Welding seam adjustable between 0.2 mm and 2mm
3) Adopt high accuracy Round guide linear motion pair .Precise parts and strictly assembling process makes it has high stability
4) Cylinders, solenoid valves, PLC and low-voltage electric components and pneumatic components etc are all selected strict, which ensured high reliability
5) Rigid grasp structure is adopted to the profile positioning system, which could strictly guarantee welding loss and high welding accuracy
6) High welding corner strength and small fluctuation range, strict conforming with the European standard
7) Guarantee good apperance when welding the colored profile
8) Special for produce high grade windows and doors.

Parameters

Input Voltage:  380V  50Hz
Air Consumption: 80L/min
Air Pressure:0.5~0.8MPa
Profile Width: 20~120mm
Profile Height: 20~120mm
Input Power:  4KW
Welding range: 400-4300mm
Dimension: 5600×1850×1700mm
