Two Head Seamless Welding Machine

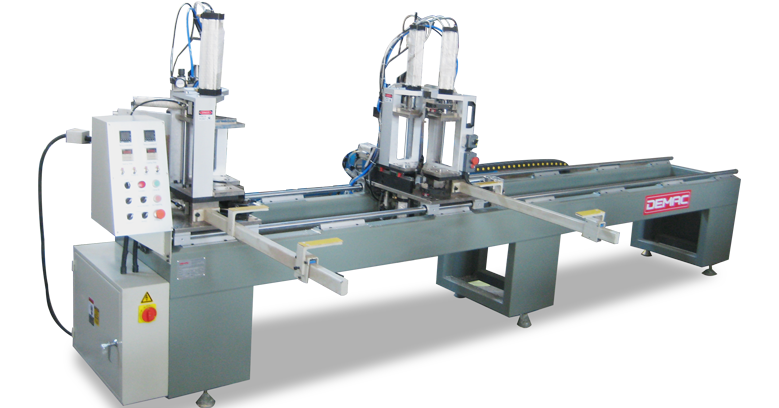

Two Head Seamless Welding Machine        HWS2-260

Function:

1) Used for general profile and colored profile corner welding, and the micro-seam cleaning of colored profile.
2) Two types welding (2mm-seam general welding and 0.2mm-seam colored profile seamless welding) is available and can be transferred by adjustment.
3) Short time for profile heating and welding, increase the efficiency.
4) The max. welding height reach to 240mm, and two pieces profiles welding (less than 120mm) at one time is available by change the double layer profile fixture.
5) All motion pair adopted linear bearing guide system, increased processing precision.
6) Adjustable positioning distance, heating distance and feeding distance, ensured the optimal welding quality.
7) Special profile fixture is easy to change, for high corner strength and later good cleaning effect.
8) Compact machine structure, convenient for adjusting, operating and repairing.

Parameter:

Operation Air Pressure: 0.5~0.8 MPa
Air Consumption : 40 L/min
Power Supply : 220V  50Hz
Input Power: 3.5 kW
Max. welding height : 260mm
Max welding width: 85mm
Overall Dimension : 4750×1100×1750 mm
