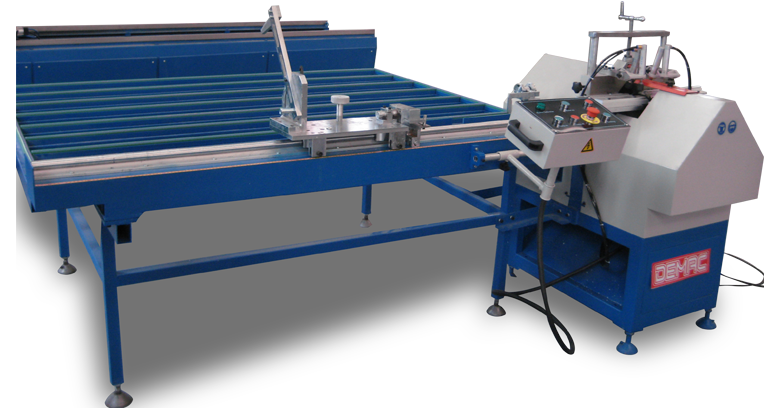

Glass Batten Saw (Table-type)

Glass Batten Saw (Table-type)        GBST-1800

Main function:

GBST-1800 glass batten saw is main equipment in manufacture of plastic door and window. It is fixed with duplicate saw blade, through witch can accomplish simultaneously glass batten’s cutting-off and cutting groove process.

Main Parameters

Power supply:380V  50Hz
Input power:0.75×2=1.5kW
Motor rotational speed:2800r/min
Operation air pressure:0.5～0.8MPa
Process length:350～1800mm
Contour dimension:2600×2100×1350mm
Machine net weight:about 450kg
Air consumption:20L/min
