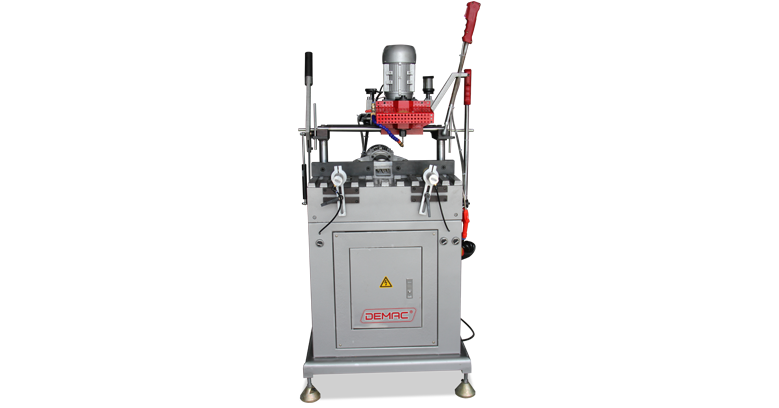

Lock Hole Milling Machine (New type)

Lock Hole Milling Machine          LHM-100

Function:

Milling all kinds of lock holes for PVC and Aluminum profile

Features :
1. Formed by three-hole drill part (horizontal direction) and copy milling part (vertical direction)
2. Adjusting parts in the top of the machine for easy adjusting
3. Leading rod of the three drilling bit ensured the three processed holes parallel.

Parameter:

Operation Air Pressure:0.5～0.8(MPa)
Air Consumption:3L/min
Input Voltage:220V/50Hz
Main-Shaft Revolution:11200/910(r/min)
Input Power:1.85(kW)
Cutter Diameter:φ5φ8(mm)
Copy Milling Range:90×290（mm）
Overall Dimension:1000×1130×1500(mm)
