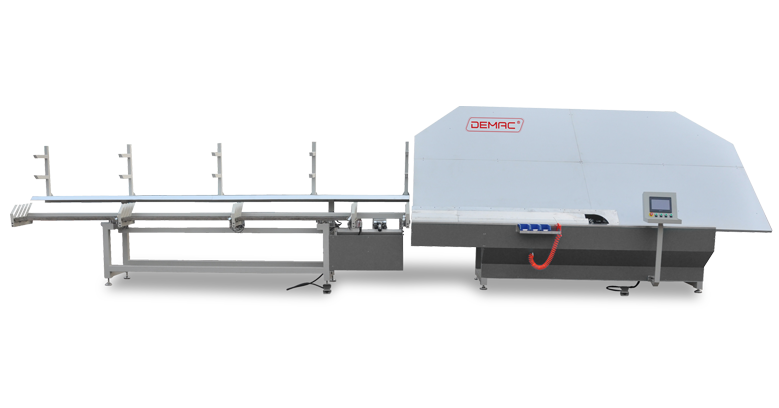

CNC Spacer Bending Machine

CNC Spacer Bending Machine           LZJ02

Features:

1.PLC control, touch screen simple operation.
2.Feeding system adopts CNC servo motor, bending angle uses CNC control system.
3.Four material storage slots for four different specifications of spacers.
4.Bending and cutting automatically avoid the connection, the roundness, automatically cut after bending.
5.With manual operation model, easy to debug and repair.
6.It can make triangle, rectangle, positive five square, positive hexagon, roundness shape and so on.

Technical parameter:

1.Voltage: 380V / 50Hz
2.Powr: 4Kw
3.Air pressure: 0.7Mpa
4.Aluminum spacer specification: 6-20mm
5.Aluminum bar size: 200x250-2500x2500mm
6.Bending angle error: ±3°
7.Feeding speed: 0-90m/min
8.Data Number: set 4 specification in one time x 8 sizes
9. Dimension: 10000x2200x2600mm
