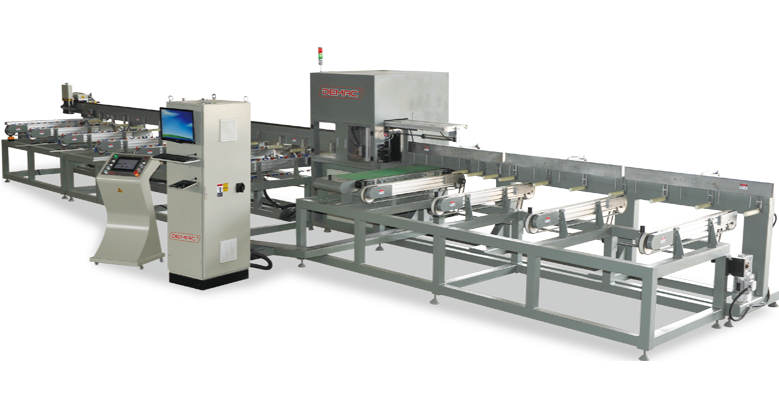

CNC Cutting Center

Function:
For Aluminum profile 90°cutting ,suitable for volume-production.

Features：

1．Automatic accomplish profile holding, feeding and cutting
2．Adopt the linear bearing system for high precision processing
3．Adopt CNC driving and controlling system, and transmission by step belt with high reliability
4．High efficient production of loading four pieces profile at one time by manipulator
5．The saw blade adopt hydro-pneumatic feeding device for stability
6．Full adopt high quality electrical and pneumatically components with top international standard of security and reliability, CAD/CAM can be available by auto programming, processing selection and communication with computer
7．Accomplishing the profile arrangement and sequence cutting with efficient using
8．Bar code printer available ,which accomplishing marked information of techniques and profile arrangement by print profile information in real time.
9．Suitable for volume-production

Parameter:

Air pressure: 0.5—0.8Mpa
Voltage: 380V 50HZ
Input Power : 5.7 KW
Rotary speed : 3300r/min
Saw blade specification: ø550X4.3X ø 30mm
Cutting range of profile : max 6000mm,min340mm
Overall Dimension : 12500X2340x1950mm
Weight: 3000kg
