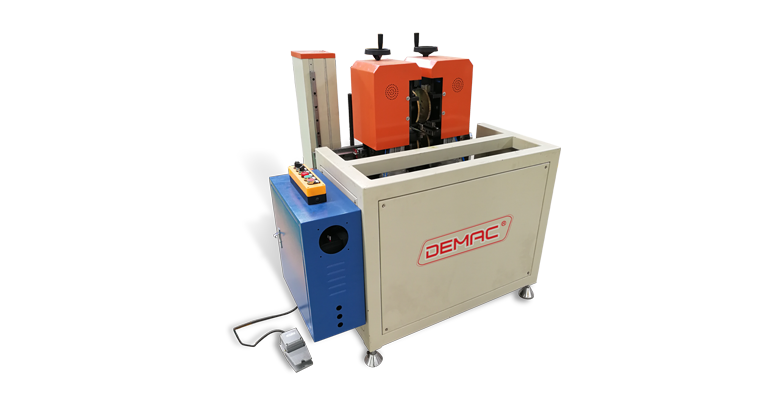

Strip Feeding Machine

Strip Feeding Machine       SF-01

Features:
Profile after knurling→feeding strip
Strip feeder adopts four-wheel drive, feeding strip through guide slot, feeding speed can be adjusted, operate easily, flexible, increase production efficiency highly
Advantage：strip is not easy to wear out when feeding, shear strength of each section finished product ( head, middle, tail is stable

Technical data：

Power supply:380V/50Hz

Total power:1.3kw

Height of strip：10.2mm－40mm

Cross-section can be processed:width（250mm）×height（300mm）

Auxiliary Frame:W（500mm）×L（5500mm）

Dimension:L（980mm）×W（720mm）×H（1260mm）

Weight:500Kg
