CNC Machining Center

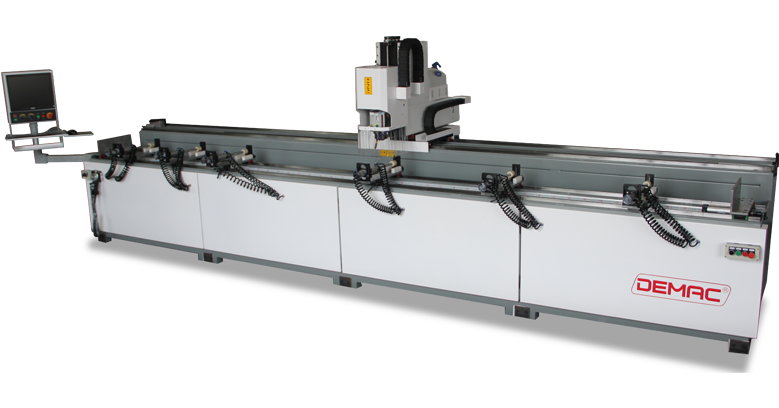

CNC Machining Center       SK-4500



Specification:

Floor-type vertical spindle machining center with 3 axis controlled by CNC able to work on extruded Aluminium profiles. The machine is fitted with an electric-spindle HSD Italy-Leading in the world (4,5kw., 24.000 rpm) with shank according with ISO30 rule, preset for an automatic tool change.  Equipped with 4x standard vices. Kit lubrication by micro drop with pure oil. Light curtain system.

It’s equipped with a cnc unit able to manage:



Linear and circular interpolation on two axis (X-Y, X-Z, Y-Z)

Programming system according to ISO codes

Programming system according to a system of aided geometric

Availability and tools parameters



Technical Parameter:



Power supply

Made to order

Z-axis feed speed

0-20m/min

Spindle motor power

4.5KW

X-axis positioning accuracy

±0.05mm

Spindle speed

24,000r.p.m

Y-axis positioning accuracy

±0.05mm

X-axis Stroke

4600mm

Z-axis positioning accuracy

±0.02mm

Y-axis Stroke

300mm

Total Input Power

7.5KW

Z-axis Stroke

200mm

Working pressure

0.8mpa

X-axis feed speed

0-80m/min

Dimensions

51000x1420x1750mm

Y-axis feed speed

0-20m/min

Weight:

1680KGS
