CNC Double Head Cutting Saw

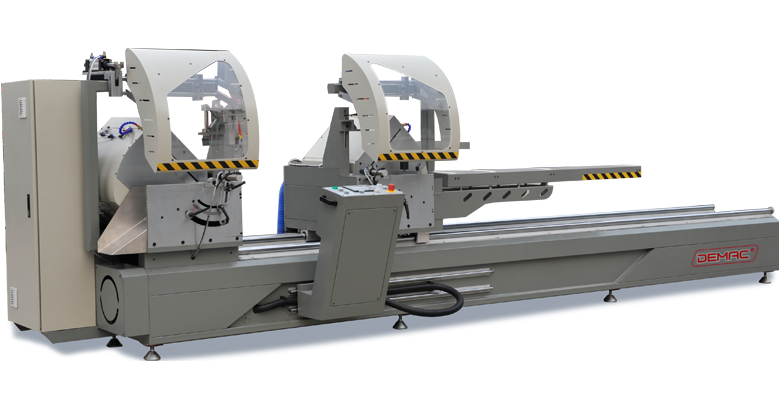

CNC Double Head Cutting Saw LJZ2-CNC-500x4200A
Specification:
CNC Double Head Cutting Saw is an advanced machine for Aluminum, PVC and Curtain-wall profile
Ensures a high accurate re-load position and convenient man operation work.
Linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stable performance.
Hydraulic cylinder ensured the stable speed adjusting and saw blade working.
Cutting length is controlled by computer control system WITH TOUCH SCREEN to locate fast and precisely.
MITSUBISHI CNC Control System for cutting Optimizing with screen output.
Automatic angle cutting change in 45° and 90°.
Carbide saw blade for a high quality cutting and life.
Safety system of shield can ensure the safe operation of man working
Technical Parameter:
Power supply | Made to order |
Motor power | 2*2.2KW |
Motor rotary speed | 3400r/min |
Operation air pressure | 0.5～0.8Mpa |
Saw blades length | 400～4200mm |
Air consumption | 200L/min |
Cutting height max | 300mm in 90°；200mm in 45° |
Cutting width | max 125mm |
Cutting angle | 90°、45° |
Feeding speed | Stepless timing 0～3m/min |
Saw blade specification | φ500mm×4.4mm×φ30mm Z=120 |
Dimension | 553mm×1250mm×1850m |
