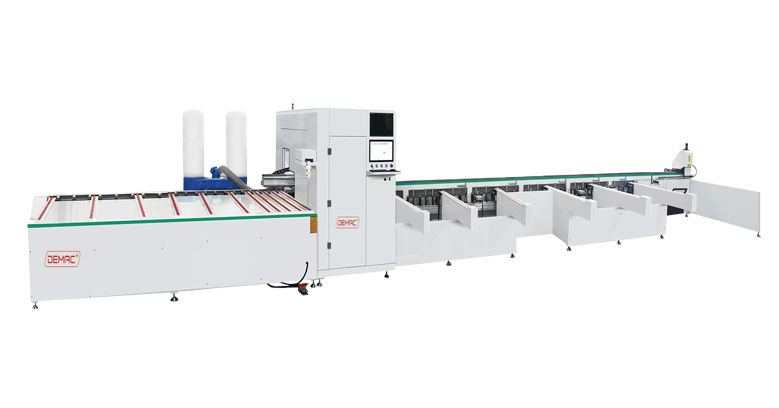

Aluminum Profile Saw Machining Center
Aluminum Profile Saw Machining Center
Technical Parameter
| No. | Specification | Parameter |
| 1 | Voltage | 380V 50Hz |
| 2 | Power | 15Kw |
| 3 | Motor Speed | 3000r/min |
| 4 | Spindle Motor | 3x3Kw |
| 5 | Air Pressure | 0.6-0.8Mpa |
| 6 | Air Consumption | 50L/min |
| 7 | Cutting Length | 280-6500mm |
| 8 | Cutting Height | 120-145mm |
| 9 | Cutting Angle | 45, -45, 90 |
| 10 | Saw Blade | 500x4.4x30mm Z=120 |
| 11 | Cutting Length Accuracy | +/-0.1mm |
| 12 | Cutting Flatness | ≤0.1mm |
| 13 | Cutting Angle Error | +/-0.5 |
| 14 | Store quantity in Loading Area | 8pcs |
| 15 | Feeding Speed | 0-120m/min |
| 16 | Cutting Efficiency | 10-15min/pc |
| 17 | Dimension
| 13500x3100x2200mm |
Video: https://youtu.be/tHvONvGsRuM
