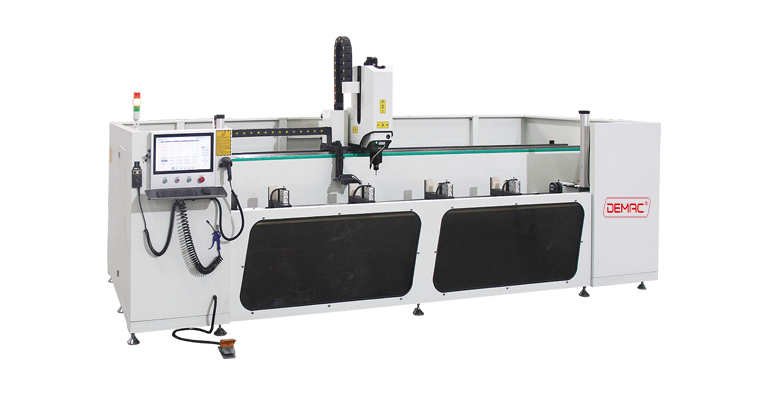

Aluminum Profile 4 Axis CNC Machining Center
Aluminum Profile 4 Axis CNC Machining Center
Technical Parameter
| No. | Specification | Parameter |
1
| Voltage | 380V 50Hz |
| 2 | Power | 9Kw |
| 3 | Tool Quantity | 6+8 |
| 4 | Y Axis Stroke | 510mm |
| 5 | Z Axis Stroke | 300mm |
| 6 | A Axis Stroke | +/-95degree |
| 7 | X Axis Stroke | 3000mm |
| 8 | Positioning Accuracy | X:+/-0.05mm, Y:+/-0.03mm, Z:+/-0.02mm |
| 9 | X Axis Feeding | 120m/min
|
| 10 | Y Axis Feeding | 48m/min |
| 11 | Z Axis Feeding | 20m/min |
| 12 | A Axis Feeding | 300r/min |
| 13 | Spindle Speed | 18000r/min |
| 14 | Optional | Saw Cutting |
| 15 | Dimension | 4900x2100x2000mm |
Video: https://youtu.be/edL2yPJgwvo
