Double Head Cutting Saw

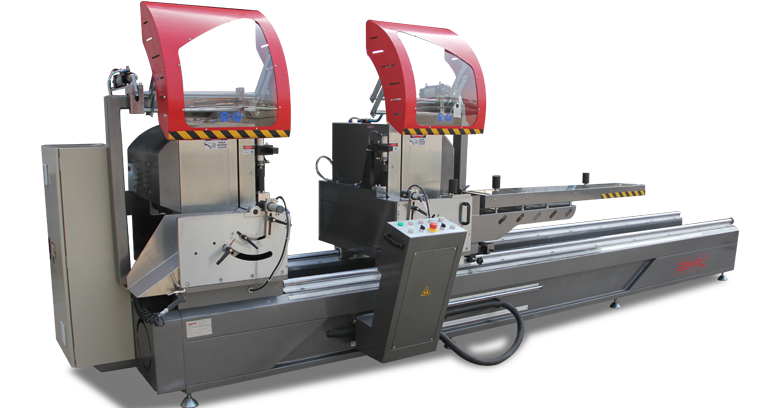

Double Head Cutting Saw          LJZ2C-500x4200A

Specification:

Used for Aluminum, PVC and Curtain-wall profile accurate Cutting

Digital display system equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and convenient man operation work.

Linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stable performance.

Hydraulic cylinder ensured the stable speed adjusting and saw blade working.

Automatic angle cutting change in 45° and 90°.

Carbide saw blade for a high quality cutting and life.

Safety system of shield can ensure the safe operation of man working.

Technical Parameter:

1. Power supply: Made to order

2. Motor power : 2*2.2KW

3. Motor rotary speed: 3400r/min

4. Operation air pressure: 0.5～0.8Mpa

5. Saw blades length: 400～4200mm

6. Air consumption: 200L/min

7. Cutting height max: 300mm in 90°；200mm in 45°

8. Cutting width: max 125mm

9. Cutting angle: Between 90° and 45°

10. Feeding speed: Stepless timing 0～3m/min

11. Saw blade specification: φ500mm×4.4mm×φ30mm  Z=120
