Double Head Cutting Saw

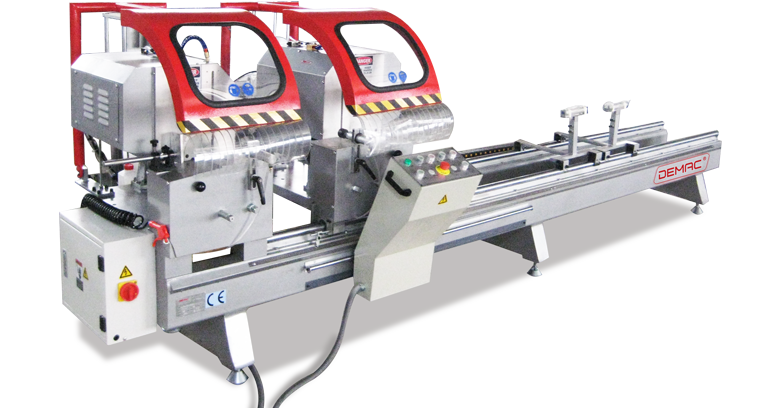

Double Head Cutting Saw     LJZ2-450X3700

Specification:

Main function description

This machine is designed for cutting Aluminum profile at the angles of ±45° and 90 °; The TCT Saw Blade is fixed on shafts spindle and can swing strongly meet processing demand, which give the machine high cutting speed and accuracy. Each saw head can operate not only independently but also cooperate with each other to accomplish profile processing.

Technical Parameter

Power supply:  Made to order

Motor power:  3.0KW

Rotational speed: 2800 r/min

Operation air pressure: 0.5~0.8MPa

Air consumption: 200L/min

Max.Cutting length: 3700mm

Min.Cutting length: 580mm (double-head)

Cutting width: 120mm

Cutting height: 150mm

Cutting angle: ±45° and 90 ° by manual tilt

Cutter feeding speed:  0~3 m/min (Stepless speed regulating)

Saw blade specification: 450*3.2*40mm

Dimension:  4500*1300*1450mm
