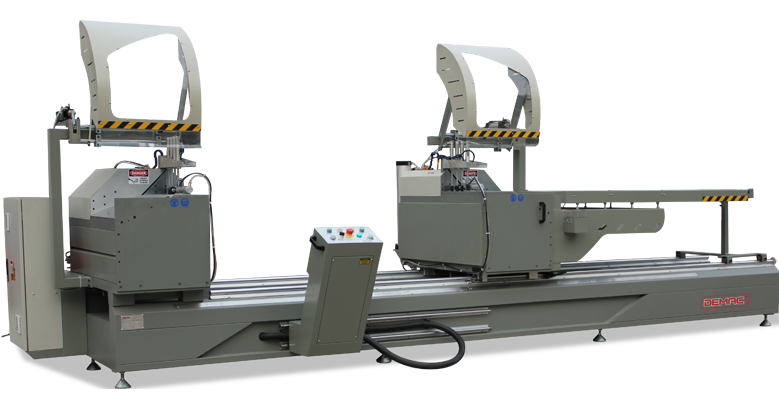

45degree Double Head Cutting Machine

45degree Double Head Cutting Saw     DCS450

Specification:

Used for aluminum profile 45° angle cutting.

Linear bearing moving parts ensure a smooth cutting head moving.

Stable and high quality cutting

Hydro-pneumatic driving system gives stable feeding.

Especially for 45° angle cutting and large capacity of multi-profiles cut in one cycle.

Technical parameter:

1. Power supply: 3phase 380v 50hz

2. Motor power:   2*2.2 KW Spindle Motor

3. Motor rotary speed: 2850r/min

4. Operation air pressure: 0.5～0.8Mpa

5. Cutting size: 450～4000mm

6. Cutting range:  Height Max 90mm, Width Max. 350mm

7. Air consumption: 200L/min

8. Cutting angle: 45°

9. Feeding speed: Stepless timing 0～3m/min

10. Saw blade specification: Φ450mm×3.5mm×φ30mm

11. Dimension: 4600mm x 1500mm x 1500mm
