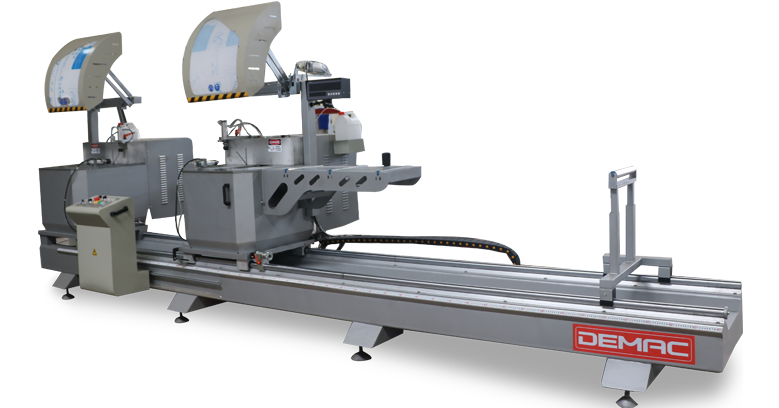

Double Head Up Cutting Saw

  Double Head Up Cutting Saw             LJZ2G-500x4500

Specification

1. Cut profile from bottom to top
2. Digital display (optional)

a. Mainly used for cut off the Aluminum curtain wall Profiles and Window/Door Profiles as well as uPVC Profiles

b. The TCT saw blade for the diameter as big as 20 " as well as high speed and high cutting precision.

c. When the two sawing unite can cut profiles simultaneously or separately; the saw blade can swing to required angle between 90° and 45 °.

d. The saw blade cut the profile from bottom to top safely and reliably, and the cutting height and width is enough.

e. The machine can equip with digital and CNC System unit.

Technical Parameter

Saw cutting length:480-4500mm

Saw cutting (w*h):240*150mm in 90° /240*130mm in 45°

Main motor power: 2.2KW*2

Main motor rotation speed :2840r/min

Saw blade dimension : Ø 500*Ø30*Ø120T

Saw blade swing angle:90° - 45°

Saw blade feeding speed:0-3m/min

Air pressure : 0.6~0.8Mpa

Working voltage:Made to order

Over all dimension(L*W*H):5750*1300*1500mm
