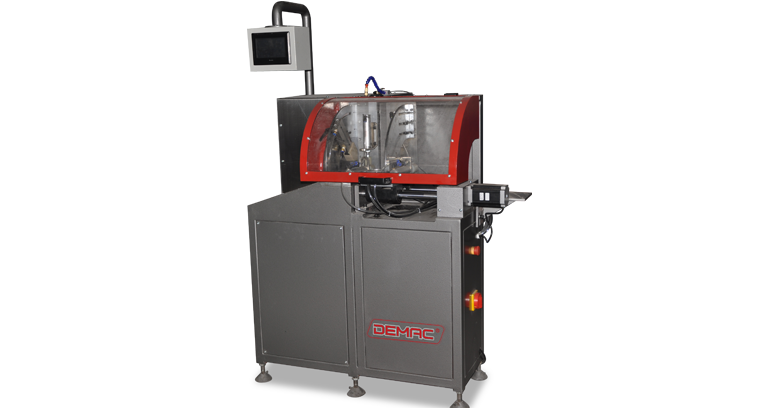

CNC Corner Key Cutting Saw

CNC Corner Key Cutting Saw     LJJZ-CNC-500

Specification:

Used for aluminum corner connector profile cutting into right pieces and the 90° aluminum and curtain-wall profile cutting..

With Micro PC CNC control System, Man-Machine interface operation.

Touch Screen input and control, convenient set the data and perform the order.

Linear bearing, running in lower resistance and high processing accuracy.

Auto profile feeding system

Automatic feeding/cutting after loading profile, convenient cooperation, safety reliable.

Setting cutting quantity in advance and digital display the cutting length and quantity.

Suitable for the batch production of corner key for aluminum window.

Technical Parameter:

 Power supply:Made to order
Motor power:2.2 KW
Motor rotary speed:2850r/min
Operation air pressure:0.5～0.8Mpa
Air consumption:80L/min
Auto-feeding length:3～170mm
Cutting length:Non limited when manual cutting
Cutting width:max 125mm
Feeding speed: stepless timing 0～3m/min
Saw blade specification:φ500mm×4.4mm×φ30mm  Z=120
Cutting width/height:140mm/140 mm
Dimension:5530mm×1770mm×1840mm
