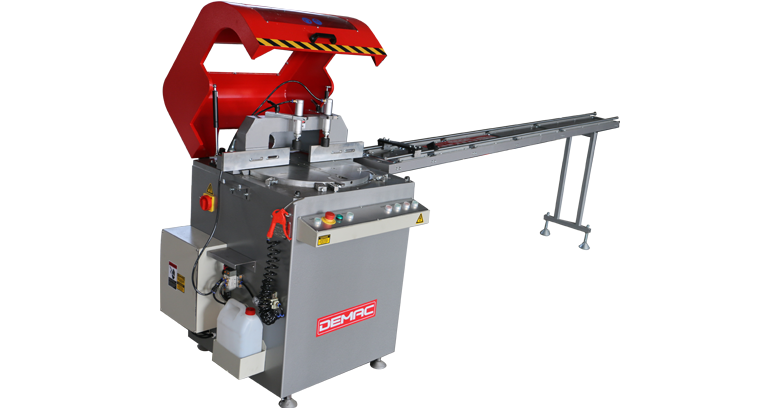

Angle Up Cutting Saw

Angle Up Cutting Saw    UCS-420

Specification:

Used for cutting Aluminum profile .
Angle tiling between 30degree to 150degree
With dia.420mm TCT saw blade, for match cutting work.
High steel body with enhance design to ensure the stable working.

Technical Parameter:

Power supply:Made to order
Operation air pressure:0.5～0.8Mpa
Motor power:2.2KW
Air consumption:80L/min
Rotary speed:2850r/min
Cutting width:230mm
Cutting height:95mm
Saw blade specification:Φ420×4.0xφ30 Z=120
Angle cutting:From 30degree to 150degree
Dimension:860×1280×1000mm
