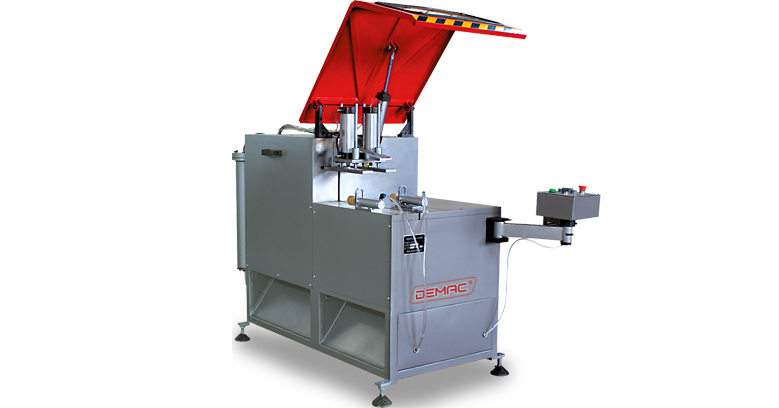

Single Head 90 degree Cutting Saw

Single Head 90 degree Cutting Saw     LJZ-500

Function:

Used for 90° aluminum and curtain-wall profile cutting.
Adopt linear bearing cutting movement, with stable cutting and ensure the cutting quality.
Heavy-duty feeding system for stable running.
Large cutting capacity with package cutting of profile and high efficient cutting.

Specification:

Power ：Made to order
Motor：2.2KW
Rotary Speed: 2850r/min
Air pressure：0.5Mpa～0.8Mpa
Air consumption：80L/min
Saw blade Speci.：φ500mm×4.4mm×φ30mm  Z=120
Cutting angle：90°
Blade feeding speed：stepless timing 0～3m/min
Dimension：850mm×1750mm×1500mm
