Single Head Corner Crimping Machine

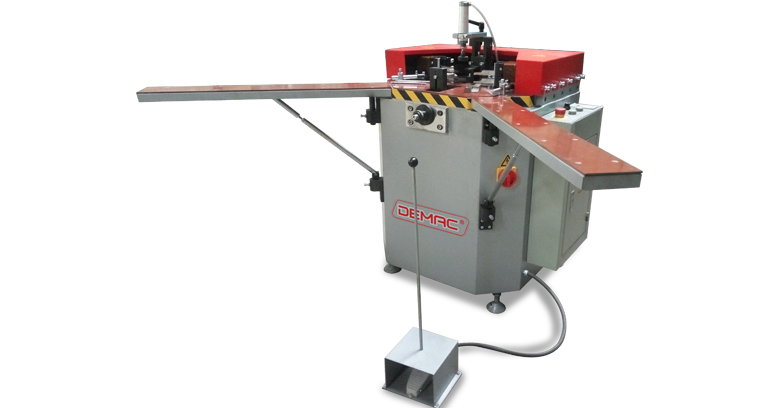

Single Head Corner Crimping Machine     LZJ-120C

Specification:
Used for aluminum frame and sash corner crimping, especially for the high-quality profile, such as thermal bridging profile.
Hydraulic system driving, ensure a stable working.
Synchronous feeding of the level (left and right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently.
Convenient operation and less error in processing.
Distance of tool knife adjustable, as the screw thread connection, easy working for tools.

Technical Parameter:
Power supply:Made to order
Operation air pressure:0.5～0.8Mpa
Motor power:1.5KW
Air consumption:20L/min
Rating pump pressure:20Mpa
Combining height:Max 120mm
Cylinder stroke:85mm
Orientation adjustment range:54mm
Combining pressure:12Mpa
Dimension:1850×1680×1210mm
