Four Head Corner Crimping Machine

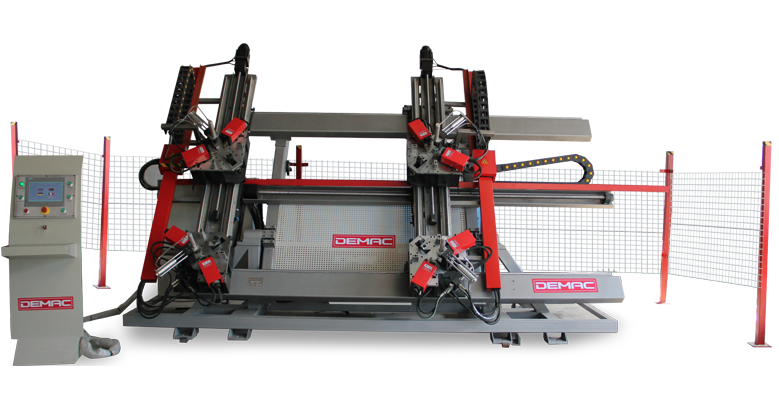

Four Head Corner Crimping Machine      CM4-CNC-1800

Function：

Used for corner crimping of aluminum window and door and curtain wall sash, four corners can be finished in one cycle.
High automatic and intelligent operation in the whole working cycle with CNC system driving, automatic fabricating size control.
Linear bearing moving with high accuracy and stability.
Four corner auto pre-clamping by moment supervising of servo-control system.
Convenient adjustment of the crimp tooling for different profile requirement.

Technical Parameter:
Power supply:Made to order
Hydralic gearbox motor power:7.5KW
Rate oil cylinder pressure:15Mpa
Oil tank capacity:40L
Air pressure:0.5～0.8Mpa
Air consumption:60L/min
Crimping pressure:12Mpa
Processing profile height:Max. 120mm
Travel size for crimping cylinder:85mm
Adjust range of main locating plate:54mm
Fabrication range:500×500～1800×3000 mm
Dimension (LxWxH):4700×2000×2660mm
