End Milling Machine

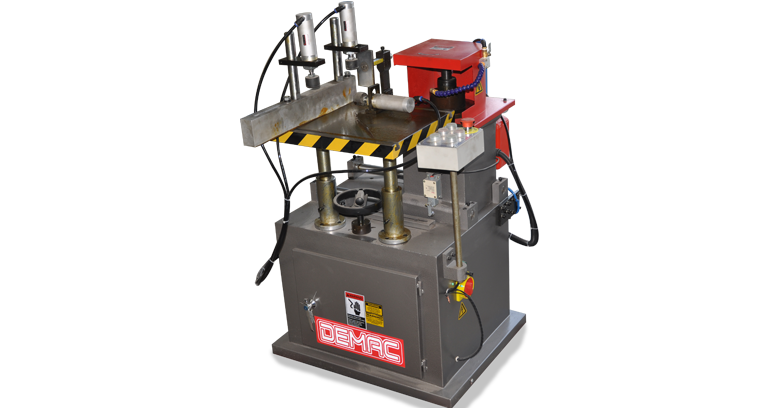

End Milling Machine     LXD-200

Specification:

Used for aluminum mullion/transom end-milling for fitting different frame.
Milling the notch and step face of mullion/transom profile.
Milling angle adjustable from 35° to 90° by angle ruler
Feeding system with linear bearing, ensure the accurate and stable working.

Technical Parameter:

Power supply:Made to order
Operation air pressure:0.5～0.8Mpa
Motor power:1.5KW
Air consumption:80L/min
Motor rotary speed:2850r/min
Main shaft diameter:φ32mm
Milling cutter diameter:φ200mm
Processing dimension:H-90mm  W-235mm
Cutting surface roughness:Ra12.5µm
Dimension:730×900×1150 mm
