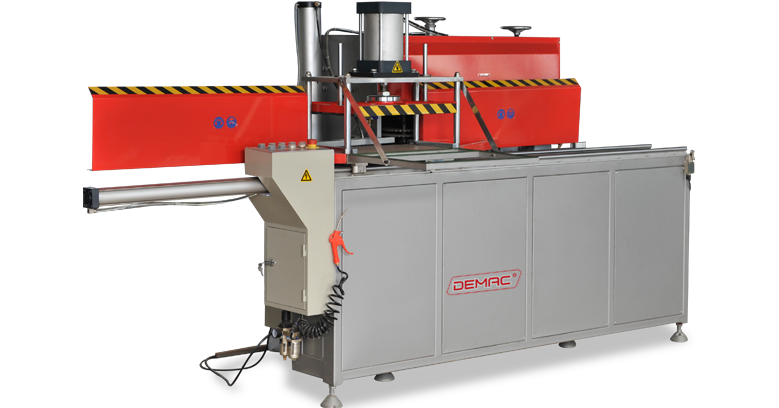

End Milling Machine

End Milling Machine     LXDB-250B

Specification:

Used for milling the mullion/transom and reinforced mullion
Large capacity milling, multi-pieces profile milling in one cycle.
Universal milling blades can be adjusted in up/down, left/right directions and not made extra, which to fit for different processing requirement and ensure the efficient working.
Can work for the reinforced mullion in one cutting/milling cycle.
Large tools with high and stable milling speed for guarantee the working quality.

Technical parameter:

Power supply:Made to order
Motor power:2.2 KW x 4
Motor rotary speed:2800r/min
Operation air pressure:0.5～0.8Mpa
Main shaft diameter:φ32mm
Air consumption:80L/min
Milling blade diameter:φ250mm
Milling deepness:Max.100mm
Milling height:Max. 90mm
Milling profile roughness:Ra12.5µm
Dimension:2480mm×970mm×145m
