End-milling machine

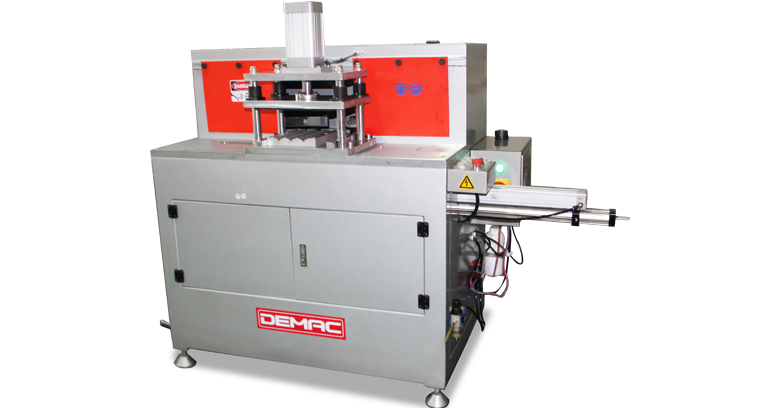

End-milling machine      LXDC--300

Function

1) Used for aluminum profile end processing, and suitable for various profiles.
2) This machine is a new design of our company, and can be seen as a combination of the strong points of other related machines,
3) It has features of compact structure, large processing range, easy operation and high efficiency.

Technical parameter

Air Pressure: 0.5~0.8(MPa)
Air Consumption:  30(L/min)
Input Voltage: 308v 50HZ
Main-shaft Revolution:2800(r/min)
Input Power: 2.2KW
Milling cutter diameter: 110-300mm
Main spindle diameter: 32mm
Milling cutter width: 90mm
Headstock journey: 0-490mm
worktable dimension:1000x260mm
Max clamping section: 300x300mm
Headstock lifting journey: 0-110mm
Location turning angle: 15-65degree
Max dimension of milling: 90x95x370mm
Overall dimension : 1600x860x1400mm
