Single Axis Routing Machine

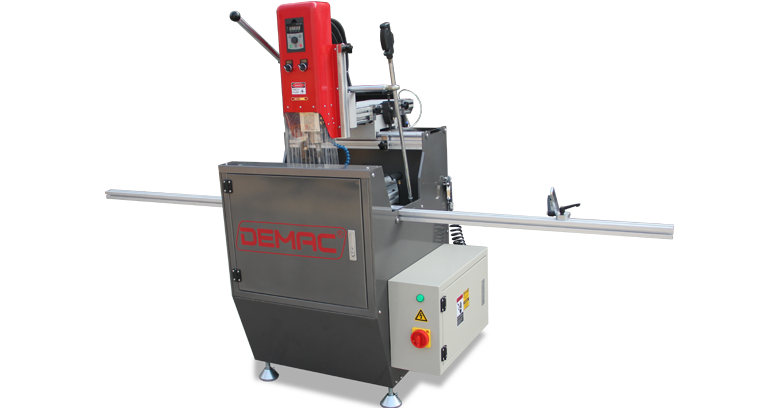

Single Axis Routing Machine      LXFZ-125x370

Specification:

It is used for processing several types of holes, grooves and water-slots on Aluminum windows & doors or curtain walls. It has the features of compact structure, nice design, smart volume and the air pressure controls the starting up of the motor. Easy replacement of the copy-routing plate, large useful scope, high efficiency and convenient operation achieve the continuous processing and safety operation.

Technical Parameter:

Voltage:Made to order
Input power:2.2Kw
Operation air pressure:0.5 ~ 0.8MPa
Air consumption:10L/min
Copy-routing range:370×125mm
Milling cutter diameter:φ5、φ8
Profile section:w230×h150~210 mm（depends on the length of the cutter）
Spindle rational speed:0-12000r/min (Changeable speed)
Processing roughness:Ra12.5
Dimension:2180×1000×1700mm（L×W×H）
