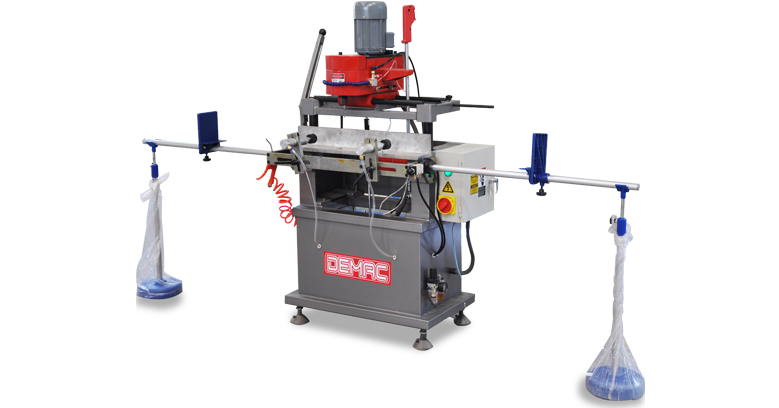

Single Head Copy Routing Machine

Single Head Copy Routing Machine     LXF-300x100

Specification:
Used for milling production of all kinds of holes and slot in aluminum window and door.
Guiding device for machine head vertical moving enhanced the milling distance and accurate position
Linear bearing used in the level moving ensured the accurate position for hole/slot shape milling.
High steel body with enhance design to ensure the stable working.

Technical Parameter:
Power supply:Made to order
Operation air pressure:0.5～0.8Mpa
Motor power:1.1KW
Air consumption:30L/min
Milling cutter rotary speed:12000r/min
Milling cutter specification:φ5×60、φ8×85
Processing dimension range:H-100mm W-120mm
Drill template specification:90mm×290mm
Dimension:880×700×1470mm
