Automatic Tenon milling machine

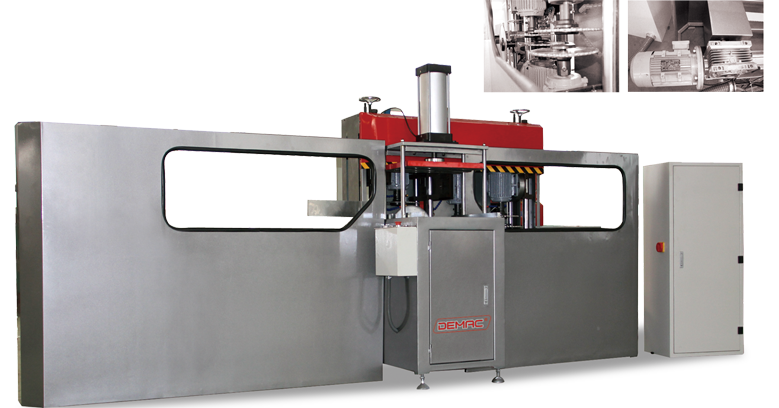

Automatic Tenon milling machine      LXSJ6A-250

Specification

Used for milling the aluminum/curtain wall profile and tenon section.
Six set milling cutters combined to meet all milling size requirement.
Tenonning the required size in one cycle.
Milling in the range of 180°
Motor driving system for feeding.

Technical Parameter:

Power supply:Made to order
Hydralic gearbox motor power:6x2.2KW
Rotary speed:2800r/min
Saw blade:250mm.
Processing range:100, 40
Dimension (LxWxH):2070×1130×1820mm
