Punching Machine- Hydraulic

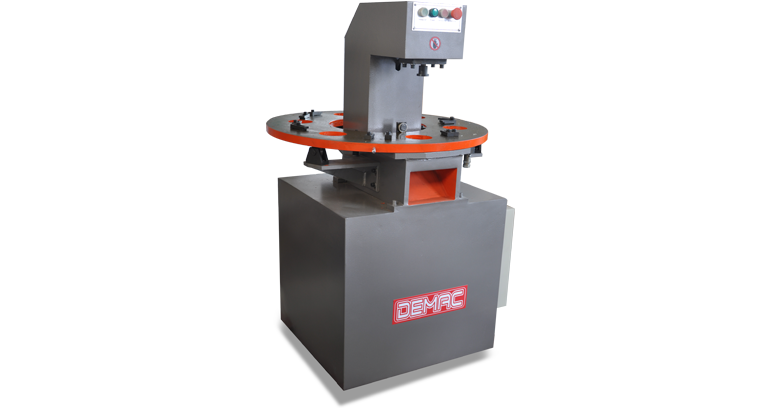

Punching Machine- Hydraulic       LY6-63

Equipment Features

1. Used for installation of aluminum windows and doors and the punching processing of aluminum profiles.
2. Punching process, by changing processing position, various types profiles can be processed.
3. Adopt disk worktable is equipped with six set dies. Each die is used at any time by the worktable rotating, which greatly increased the production efficiency.
4. Per work position can be used to turn around.
5. High hydraulic power and good processing quality.

Main specification and technical parameter

Power supply：Made to order
Motor power：2.2kw
Motor rotational speed：1420r/min
Rated oil pump pressure：16MPa
Capability of oil box：20L
Press nominal pressure：60KN
Travel times：30/min
Closing height ：185mm
Punching travel ：30mm
Contour dimension： 900×900×1450mm (L×W×H )
Processing deviation from Straightness：±0.1 mm
Cutting profile surface roughness： Ra12.5um
Die size：250×200（mm）
Die thickness ：185mm
