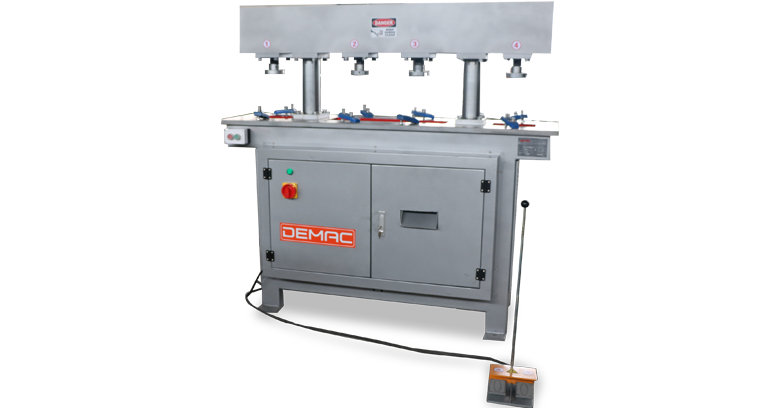

Hydraulic Punching Machine

Function:

1. Work with separated press and each press with hydraulic cylinder, can get more power in each press, working separated.

2. Punching process, by changing processing position, various types profiles can be processed.

3. Large working capacity for working more stations.

4. High hydraulic power and good processing quality.

Main specification and technical parameter

Power supply	3Phases 380volts 50Hz
Motor power	4.0kw
Capability of oil box	130L
Oil Pressure	Maxi.20 Mpa.
Press nominal pressure	10000kg for each press
Die height: Maxi.	240mm
Punching travel	Maxi.70mm
Contour dimension	1700×730×1280mm (L×W×H )
Processing deviation from Straightness	±0.1 mm
Cutting profile surface roughness	Ra12.5um
