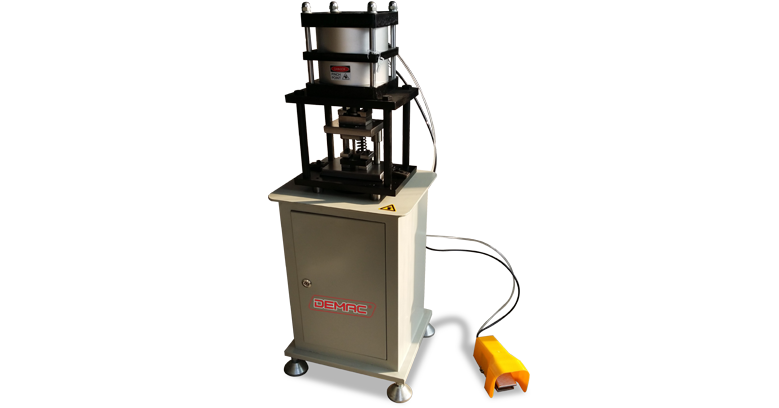

Punching Machine-Pneumatic

Punching Machine-Pneumatic         LY-16

Specification

Used for hardware slot punching and processing of aluminum window and door.
Equipped with 3 standard stations maximum, can punch the handle slot, sharp-angled cutting and friction hinge slot.

Technical parameter

Power supply:Pneumatic
Operation air pressure:0.5～0.8Mpa
Air consumption:80L/min
Die dimensions:200x250 mm
Punching pressure:30Kn
Punching travel:17mm
Dimension:800×600×1300mm
