Notching Saw

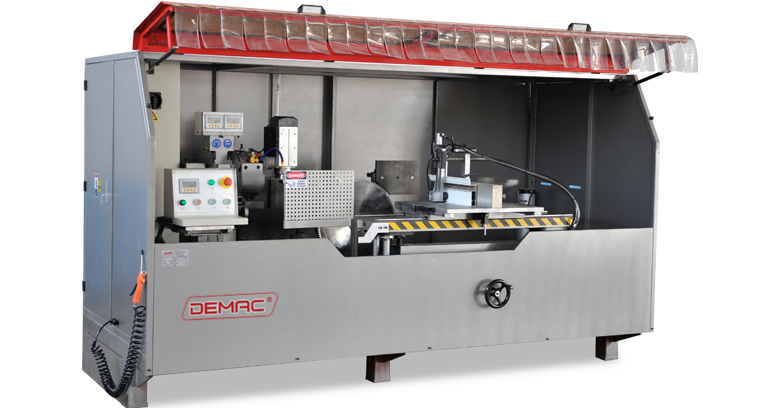

Notching Saw         NS-550

Specification:

The machine is developed and designed by adopting mature Italian design idea in combination with the newest application requirement and habit, and the machine is mainly used for the processing of end surface connector of aluminum curtain wall profile, window and door profile and other aluminum industrial profiles. It’s equipped with accurate digital display angle measuring device and high quality motor, as well as 22"   hard alloy saw blade, it has features of high linear velocity and precision and the swing angle of both blades is ±45°. It's the most stable machine after release to market, and wins high appraisal and recognition of customers; it’s one of our featured machines.


Parameter

Power voltage:380v 50hz, 3ph
Cutting size:205mm
Power of main spindle motor:2X2.2kW
Rotating speed of main motor:2850RPM
Size of saw blade:Φ550XΦ30X128T
Rotating angle of saw blade:±45°
Feeding speed of saw blade:0-3m/min
Rotating angle of worktable:±45°
Working air pressure:0.6-0.8MPa
