CNC Hydraulic Bending Machine

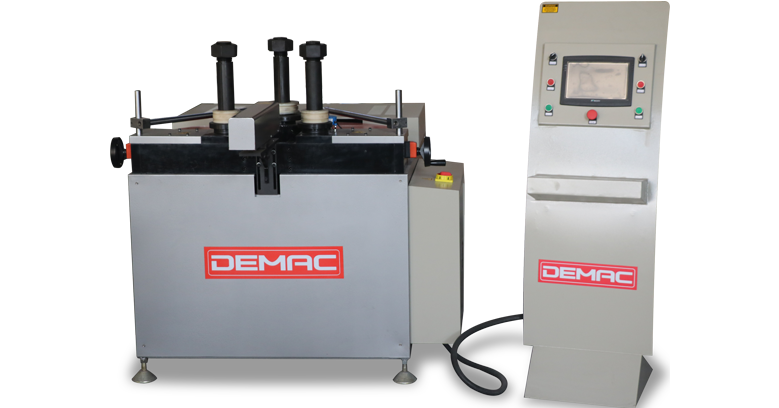

CNC Hydraulic Bending Machine HBM-CNC-15

Features:

1. The machine has three motivated driving rollers that can avoid sliding during running.

2. The max hydraulic pressure can be reached 20T that brings the easily bending of all kinds of aluminum profile and window sash (rectangular steel tube)
3. All products not only can be formed in once with high efficiency and zero wear rate, but also can be formed in many times.
4. Three rollers are controlled by CNC system with features of smooth moves and high precision. Positional accuracy: +/-0.02mm.
5. Space of driving wheel is set according to user needs. It can be adjusted in different position, in other words, the position of two wheels can be adjusted to different space.
6. It not only can be bended into one radius arc (ordinary type C arc), but also two radius arcs (type U arc), and three radius arc (bread arc and ellipse).
7. With the function of intelligent calculation of material spring back amount and compensation, aiming at the same bend radius arc, the machine can calculate the spring back amount automatically that can avoid waste of material and time during forming different kind of arc.
8. The machine can store a certain amount of procedure (depend on memory space), input information as detail as possible for easy recognition during next use.
9. It can bend all kinds of aluminum profile (ordinary aluminum profile, thermal break aluminum, aluminum-plastic-aluminum, aluminum plastic), rectangular steel tube, etc.
10. The horizontal placing of machine can adapt to different kinds of profile in different size and weight.
11. It is flexible operating that can be controlled manually or automatically.
12. Various feeding speed can be adjusted during every procedure, which improves the workpiece quality and meets the requirement of productivity.
13. Mould is simple and useful; it can bend aluminum with radius 250 mm without wrinkles.

Technical Parameter:

Minimum bending radius:180mm
Diameter of roller:65mm
Working mode:NC, hydraulic drive
Center distance of rollers:350mm
Positioning precision of upper roller:0.02mm
Max.travel route of upper roller:210mm
Maximum width of profile:160mm
Maximum height of profile:260mm
Power of oil pressure motor:4.5kw
Pressure of oil:20T
Working voltage:380VAC/50HZ
