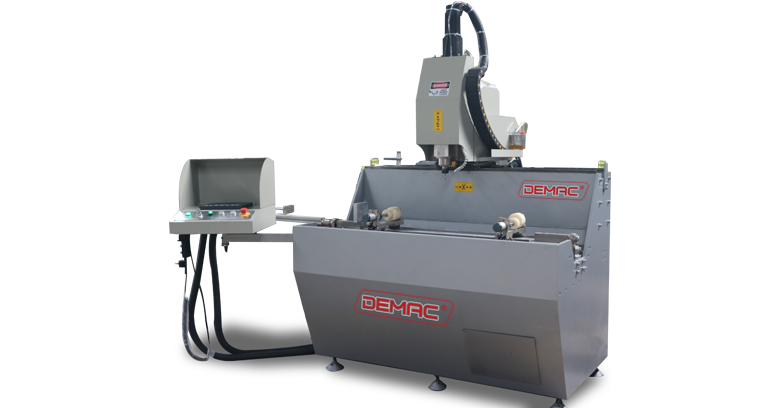

CNC Machining Center  MC-1000

Specification:

1. Applicable for drilling holes, milling grooves, processing circular holes and special-shaped holes, plane engraving of aluminum alloy profiles.
2. Adopting high precision linear guide, ball screw, gear rack and imported servo motor to ensure the smooth movement, with high positioning and processing accuracy
3. Adopt imported high speed spindle, stable and low noise, high cutting ability and high reliability.
4. Tool cooling: according to the processing procedures, automatic spray cooling
5. Rotatable worktable can be arbitrary conversion between three degrees as -90 degree, 0 degree and +90 degree, to meet one time clamping can complete the three surface milling. When processing the deep hole (special shaped hole), turning worktable to process deep holes. High efficiency and high precision.
6. Adopt Germany PA CNC system, applicable to a wide range of processing
7. By using program software to automatically transform and process G code: easy operation: high efficiency and low labor intensity.

Technical parameter:

X-axis stroke:1000mm
Y-axis stroke:300mm
Z-axis stroke:280mm
X-axis feed rate:0~30m/min
Y-axis feed rate:0~15m/min
Z-axis feed rate:0~15m/min
Voltage:380V/50Hz
Air source:0.5~0.8MPa
Motor Power:7.5kw
Fixture quantity:2
Spindle speed / Motor:18000rpm / 4.5Kw
Worktable position:-90°, 0°, +90°
Handle type:ER32-Ф8
Processing size range (WxHxL):120×90×1000mm
