CNC Routing Machine

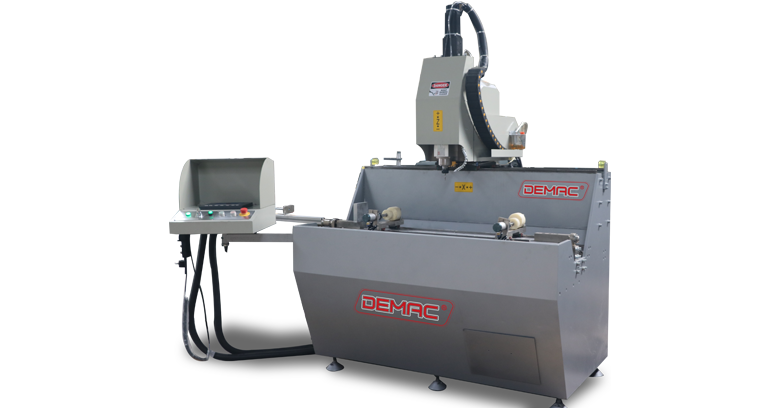

CNC Routing Machine      SK-1000

Specification:

Floor-type vertical CNC Routing machine with 3 axis able to work on extruded Aluminum profiles. The machine is fitted with an electric-spindle HSD Italy-Leading in the world (4,5kw., 24.000 rpm) (Not with shank). Kit lubrication by micro drop with pure oil. Light curtain system.
It’s equipped with a CNC unit able to manage:
Linear and circular interpolation on two axis (X-Y, X-Z, Y-Z)
Programming system according to ISO codes
Programming system according to a system of aided geometric
Table tilt with three position at +90°0°-90°

Parameter:

Power supply:380V 50HZ
Spindle motor power:3.0KW
Spindle speed:0-24,000r.p.m
X-axis Stroke:1000mm
Y-axis Stroke:300mm
Z-axis Stroke:280mm
X-axis feed speed:0-30m/min
Y-axis feed speed:0-15m/min
Z-axis feed speed:0-15m/min
X-axis positioning accuracy:±0.15mm
Y-axis positioning accuracy:±0.15mm
Z-axis positioning accuracy:±0.15mm
Total Input Power:6.0KW
Working pressure:0.6-0.8mpa
