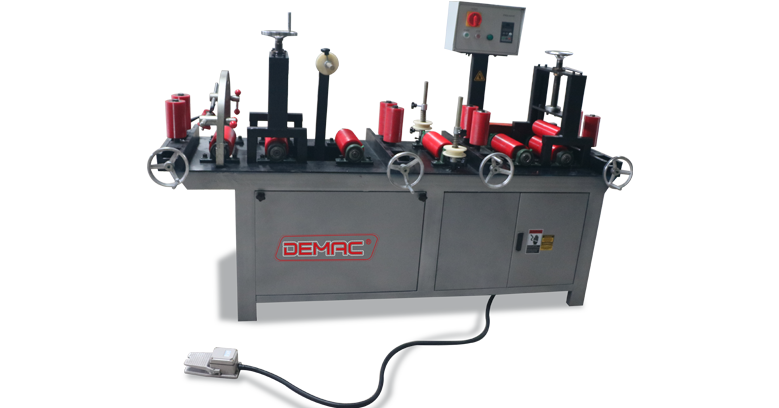

Profile Lamination Machine

Profile Film Lamination Machine

Specification:


The machine is used for packing of the protective film of aluminum profile, Upvc profile, etc.
Feature:
1.Adopt the high frequency converter and digital display speed regulation
2.Flexible adjustment hand-wheel, quickly and effectively adjust the film distance
3.Quick changing and quick clamping device can change the protective film quickly
4.Protection range: four sides, arc surface, 360 degree comprehensive protection

Technical Parameter:

Power: Made to order
Motor: Y90L1.5KW-4
Speed: 0-200m/ min
Max. Profile size: 250mm width x 150mm height
Dimension: 1800x720x1450mm
