Multi Spindle Copy Router

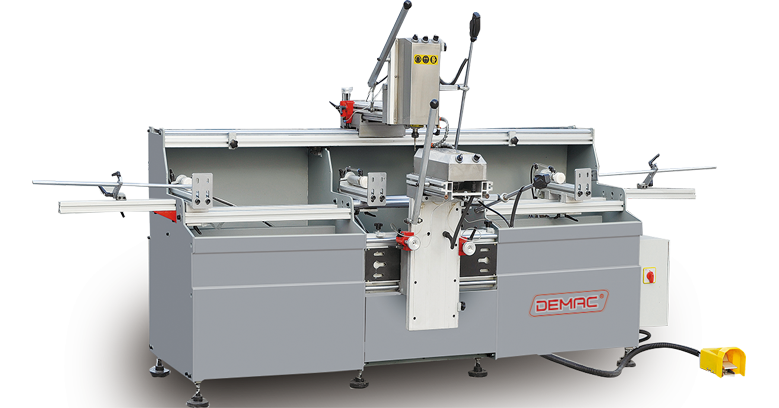

Multi Spindle Copy Router       LXFII-1900X125

Function:

1  It is used for processing several types of hole, grooves and water slots on Aluminum and uPVC windows and doors or curtain wall.
2  This machine has characteristics of compact structure, small volume. Profile clamp and motor start adopts air pressure control.
3  High speed milling and good quality.
4  Template changeable for different holes and grooves
5Adopt two drive-head level and vertical ,and can finish the clamping in two directions simultaneously

Parameter

Air Pressure: 0.5∼0.8(MPa)
Air Consumption:20(L/min)
Input Voltage: 380V/220V  50Hz
Main-shaft Revolution:12000(r/min)
Input Power:2.2(kW)
Cutter Diameter:Ø5  Ø8 (mm)
Copy-routing range: (mm):1900×125
Overall Dimension: 3300×1400×1700mm
