CNC Machining Center

Specification:

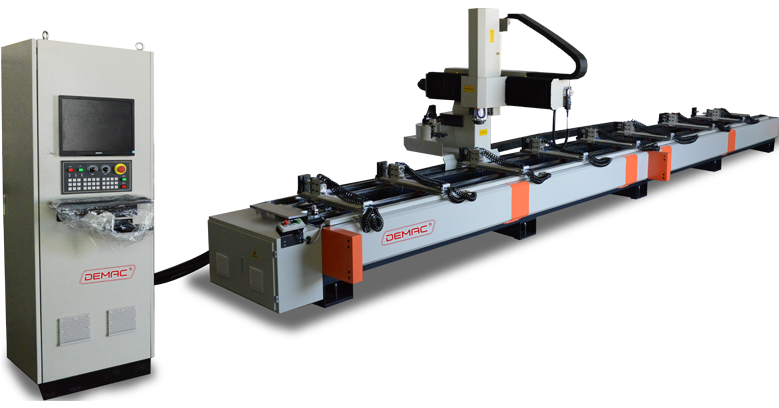

Floor-type vertical spindle machining center with 4 axis controlled by CNC able to work on extruded Aluminium profiles. The machine is fitted with an electric-spindle HSD Italy-Leading in the world (7,5kw., 24.000 rpm) with shank according with ISO30 rule, preset for an automatic tool change. The tool magazine, fixed on the mobile upright, can store till 6 tools to drill, to mill and to thread plus 2 also possible to used to mill with a side milling cutter. Equipped with 4x standard vices. Kit lubrication by micro drop with pure oil. Light curtain system.
Spindle’s axis can be positioned electronically at every degree included in ±95°
It’s equipped with a cnc unit able to manage:

Linear and circular interpolation on two axis (X-Y, X-Z, Y-Z)
Programming system according to ISO codes
Programming system according to a system of aided geometric
Availability and tools parameters

Technical Parameter:

Power supply:Made to order
Spindle motor power:7.5KW
Spindle speed:24,000r.p.m
X-axis Stroke:7000mm
Y-axis Stroke:500mm
Z-axis Stroke:300mm
X-axis feed speed:0-80m/min
Y-axis feed speed:0-30m/min
Z-axis feed speed:0-30m/min
X-axis positioning accuracy:±0.05mm
Y-axis positioning accuracy:±0.02mm
Z-axis positioning accuracy:±0.02mm
Tool capacity:6
Working pressure:0.8mpa
Dimensions:9000x2000x2200
