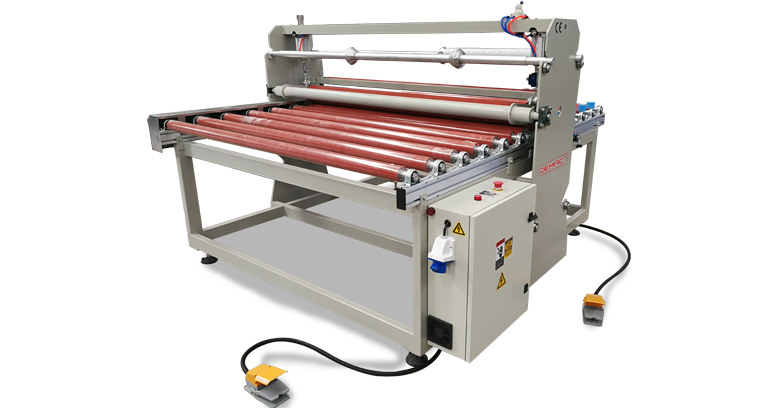

Glass Film Lamination Machine

 Glass Film Lamination Machine            FMJ1600

  Glass Film Lamination Machine

Function:

1.The machine is mainly used for covering film on all kinds of flat surface products as single layer glass, mirror, insulating glass, etc.
2.It can cover explosion-proof film and protective film
3.Film covered well and flat.
4.It is easy to operate and flexible control.
5.Optional function: auxiliary turning glass, combination film cover, auto cut off the film, etc.

Technical Parameter:

1.Voltage: 380V 50Hz
2.Power: 0.75/1.1Kw
3.Film thickness: 1.5mm-40mm
4.Max. Glass size: 2400*1600mm
5.Min. Glass size: 400*200mm
6.Film cover speed: 0.5-7m/s adjustable
7.Film roll specification: Roll diameter 60-80mm
                     Film outside diameter less and equal to 200mm
                     Film length less and equal to 1650mm
8.Feeding table size: 1000x1650x850mm
9.Loading table size: 1000x1650x850mm
