CNC Machining Center

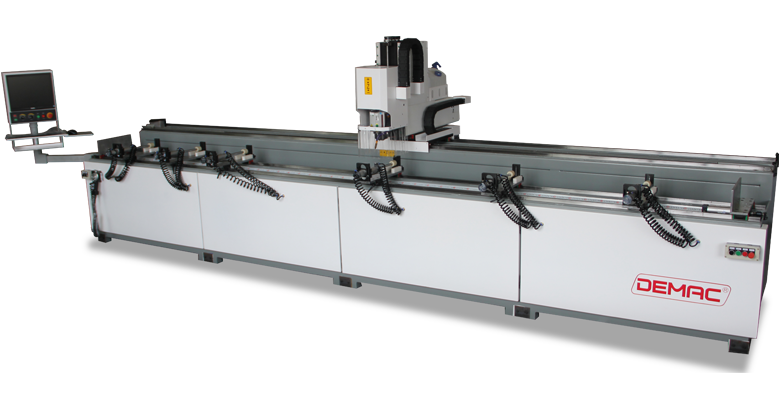

CNC Machining Center         SK-4500



Specification:


Floor-type vertical spindle machining center with 3 axis controlled by CNC able to work on extruded Aluminium profiles. The machine is fitted with an electric-spindle HSD Italy-Leading in the world (4,5kw., 24.000 rpm) with shank according with ISO30 rule, preset for an automatic tool change.  Equipped with 4x standard vices. Kit lubrication by micro drop with pure oil. Light curtain system.
It’s equipped with a cnc unit able to manage:

Linear and circular interpolation on two axis (X-Y, X-Z, Y-Z)
Programming system according to ISO codes
Programming system according to a system of aided geometric
Availability and tools parameters



Technical Parameter:



Power supply:Made to order
Spindle motor power:4.5KW
Spindle speed:24,000r.p.m
X-axis Stroke:4600mm
Y-axis Stroke:300mm
Z-axis Stroke:200mm
X-axis feed speed:0-80m/min
Y-axis feed speed:0-20m/min
Z-axis feed speed:0-20m/min
X-axis positioning accuracy:±0.05mm
Y-axis positioning accuracy:±0.05mm
Z-axis positioning accuracy:±0.02mm
Total Input Power:7.5KW
Working pressure:0.8mpa
Dimensions:51000x1420x1750mm
Weight:1680KGS
