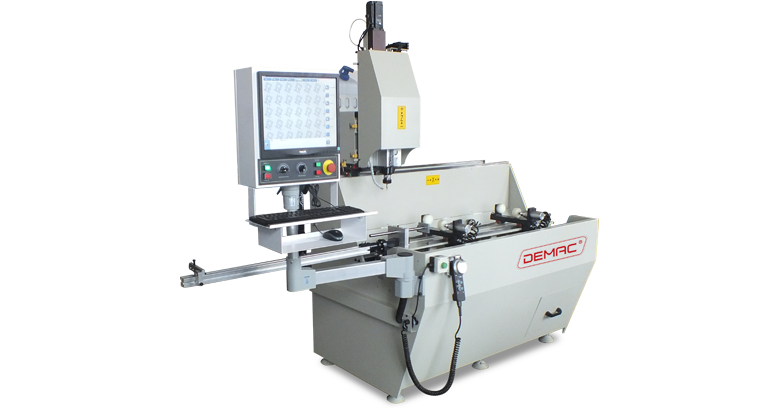

CNC Machining Center

Specification:

1. Applicable for drilling holes, milling grooves, processing circular holes and special-shaped holes, plane engraving of aluminum alloy profiles.
2. Adopting high precision linear guide, ball screw, gear rack and imported servo motor to ensure the smooth movement, with high positioning and processing accuracy
3. Adopt imported high speed spindle, stable and low noise, high cutting ability and high reliability.
4. Tool cooling: according to the processing procedures, automatic spray cooling
5. Rotatable worktable can be arbitrary conversion between three degrees as -90 degree, 0 degree and +90 degree, to meet one time clamping can complete the three surface milling. When processing the deep hole (special shaped hole), turning worktable to process deep holes. High efficiency and high precision.
6. Adopt Germany PA CNC system, applicable to a wide range of processing
7. By using program software to automatically transform and process G code: easy operation: high efficiency and low labor intensity.

Technical parameter:

X-axis stroke 1000mm
Y-axis stroke 300mm
Z-axis stroke 280mm
X-axis feed rate 0~30m/min
Y-axis feed rate 0~15m/min
Z-axis feed rate 0~15m/min
Voltage 380V/50Hz
Air source 0.5~0.8MPa
Motor Power 7.5kw
Fixture quantity 2
Spindle speed / Motor 18000rpm / 4.5Kw
Worktable position -90°, 0°, +90°
Handle type ER32-Ф8
Processing size range (WxHxL) 120×90×1000mm
Dimension 2200×1500×1950mm
Weight 650kg
