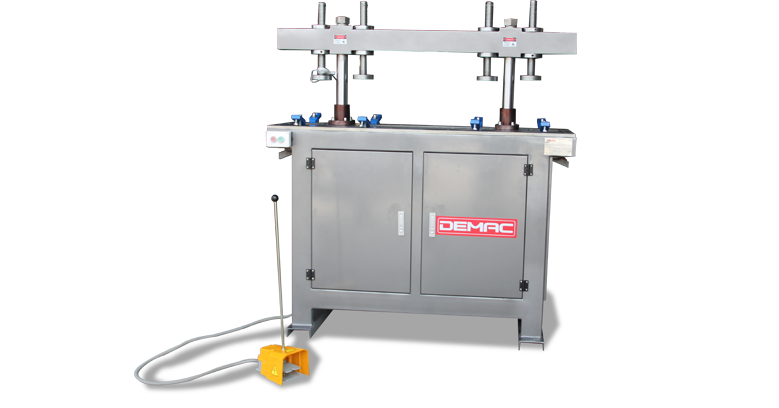

Hydraulic Punching Machine

Punching Machine- Hydraulic        LY3-63

Function:

1.Work with single or combined multi mould together for Aluminum profiles
2.Punching process, by changing processing position, various types profiles can be processed.
3.Large working capacity for working more stations.
4.High hydraulic power and good processing quality.

Main specification and technical parameter

Power supply：3Phases 380volts, 50Hz
Motor power：2.2kw
Motor rotational speed：1420r/min
Capability of oil box：40L
Press nominal pressure：8000kg
Travel times：30/min
Closing height ：140mm
Punching travel ：Maxi.60mm
Contour dimension： 1250×730×1280mm (L×W×H )
Processing deviation from Straightness：±0.1 mm
Cutting profile surface roughness： Ra12.5um
