Hydraulic Punching Machine

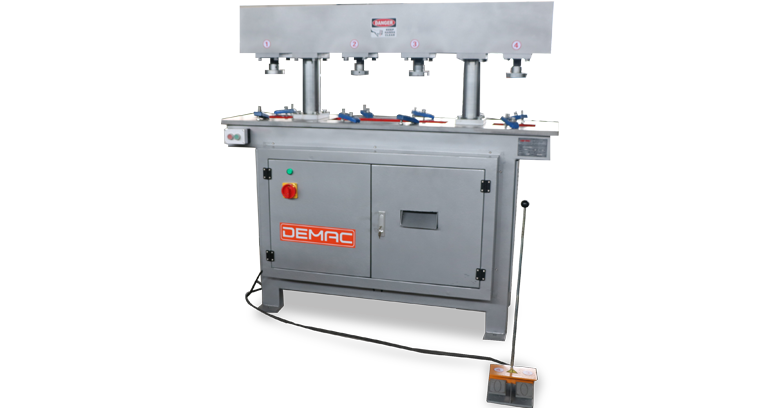

Hydraulic Punching Machine        LY4-63

Function:

1.Work with separated press and each press with hydraulic cylinder, can get more power in each press, working separated.
2.Punching process, by changing processing position, various types profiles can be processed.
3.Large working capacity for working more stations.
4.High hydraulic power and good processing quality.

Main specification and technical parameter

Power supply：3Phases 380volts, 50Hz
Motor power：4.0kw
Capability of oil box：130L
Oil Pressure:   Maxi.20 Mpa.
Press nominal pressure：10000kg for each press
Die height: Maxi. 240mm
Punching travel ：Maxi.70mm
Contour dimension： 1700×730×1280mm (L×W×H )
Processing deviation from Straightness：±0.1 mm
Cutting profile surface roughness： Ra12.5um
