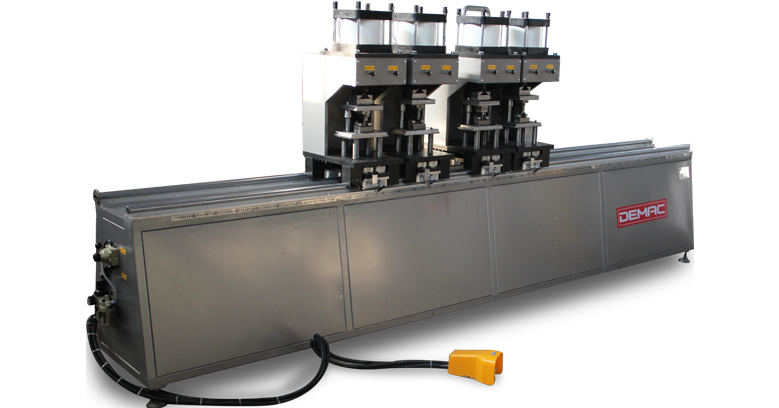

Four Head Pneumatic Punching Machine

Four Head Pneumatic Punching Machine     LY4-16

Specification

LY4-16 Punching Machine for is one of the special equipments for working aluminum profile punching in Solar energy industry. It applies to process of punching hole and side cut for installing hardware. It has features of advanced technology, firm structure, high efficiency and easy operation.

Technology parameter

1) Punching normal pressure: 22KN
2) Punching station: 3
3)Air pressure: 0.6-1.0Mpa (Recommendations for the use of 0.8Mpa)
4)Air consumption: ≥27m³/min
5) Punching travel: 25mm
6) Thickness of profile: ＜2mm
7) Dimension: 4010*600*1700mm
8) Weight: 600kg
