Aluminum Multi-profile Cut Off Saw

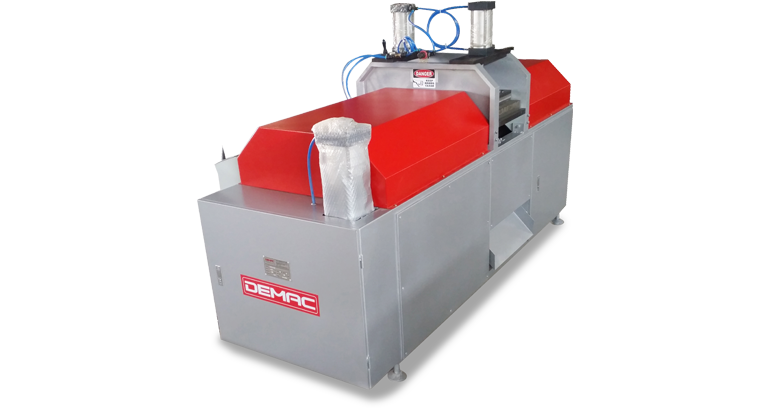

Aluminum Multi-profile Cut Off Saw        MCS-55

Specification

Special cutting for the short size, with cutting jig , one cycle can finish multi pieces profiles,
With 2pcs saw blade in 45 degree angle, one time finish the angle cut.

Technology parameter

Power : 3phase ,420v 50hz
Air pressure:  0.6-0.8mpa
Rotation speed: 2800rpm
Cutting Height: 0-85mm
Working travel: 760mm
Saw blade:  Dia.355mm x dia.25.4mm x 3mm
Weight:  800kg
