Automatic Single Head Drilling Machine

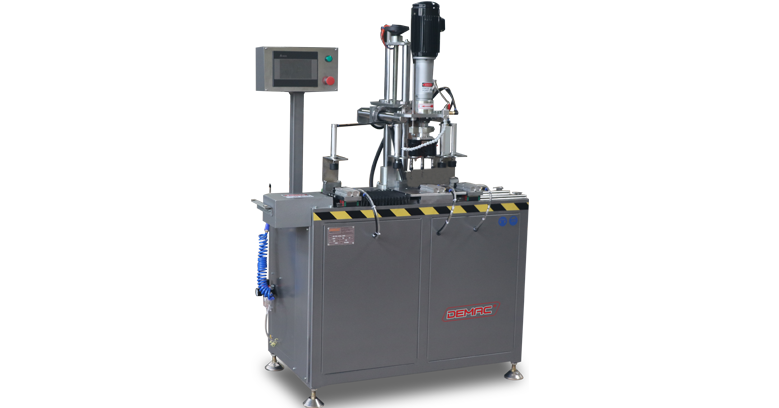

Automatic Single Head Drilling Machine   SD-300

Feature

SD-300 type aluminum shutter CNC drilling machine is a new model for aluminum window door. It has some advantages as easy operation, CNC control feeding, high precision, adapt to different blinds, no need die, etc. This machine is mainly used for drilling shutter holes, especial the double shutter.

Technical parameter

Power: 380V 50HZ three-phase four wire
Motor: 1.1kw
Air pressure: 0.5-0.8MPa
Air consumption: 30L/min
Router bit diameter: 3-7
Router bit rotation rate: 2840r/min
Max. CNC feeding: 200mm
Feeding speed: CNC digital speed control 0-5m/min
Three head drilling package adjustment range: 20-112mm (Taiwan)
CNC system and touch screen: Taiwan Delta
Dimension: 1100*700*1600mm
