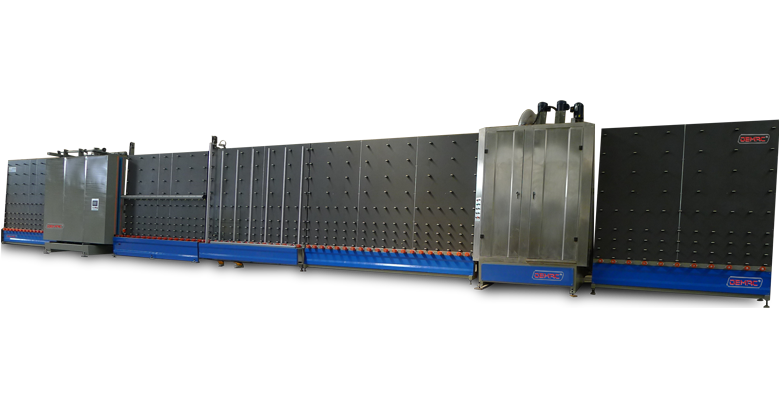

Automatic Insulating glass production line

Automatic Insulating glass production line          LB2510W/LB2210W

Features:

1.Automatically distinguish the coating side of coated glass and low-E glass.
2. PLC control system with touch screen operation.
3. Machine work and fault dynamic display.
4. Outside assembly lines can produce standard double layer IG and three layers IG.
5. Lines are available for both of inside and outside panel press, which can produce stepped IG, standard double layer IG and three layers IG (optional).
6. Designed for curtain wall glass, double layer IG and three layer IG glass.
7. IG press design-gear and chain synchronous device driven by hydraulic station.
8. Frequency control designed for glass transmission.
9. Output: 800 units-single shift 8 hours (double layer IG, size 1m).
10. Panel press open able, easy for maintenance.

Technical Parameter:

1. Power: 27.25kw
2. Max. glass size: 2500*3000 / 2200*3000mm
3. Min. glass size: 200*450mm
4. Pane glass thickness: 3-15mm
5. Max. IG unit thickness: 12-50mm
6. Glass washing speed: 0-8m/min
7. Working speed: 0-45m
8. Air soure (Air pressure): 0.8m3/min (1Mpa)
9. Water electrical conductivity: ≤50 uS/cm
10. Overall dimension: 22750x2300x3400mm / 22750x2300x3200mm
