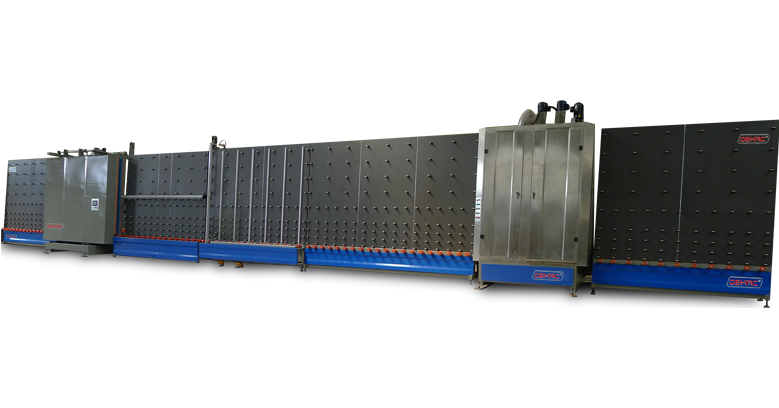

Automatic Insulating glass production line

Automatic Insulating glass production line    LB2010W/LB1810W

Features:

1.Automatically distinguish the coating side of coated glass and low-E glass.
2. PLC control system with touch screen operation.
3. Machine work and fault dynamic display.
4. Outside assembly lines can produce standard double layer IG and three layers IG.
5. Lines are available for both of inside and outside panel press, which can produce stepped IG, standard double layer IG and three layers IG (optional).
6. Designed for curtain wall glass, double layer IG and three layer IG glass.
7. IG press design-gear and chain synchronous device driven by hydraulic station.
8. Production line-Ⅰis spacer attaching in assembly section.
 Production line-Ⅱis spacer attaching in apart assembly section.
9. Output: 800 units-single shift 8 hours (double layer IG, size 1m).
10. Panel press open able, easy for maintenance.

Technical Parameter:

1. Power: 20.87kw
2. Max. glass size: 2000*2500 / 1800*2500mm
3. Min. glass size: 200*450mm
4. Pane glass thickness: 3-12mm
5. Max. IG unit thickness: 12-40mm
6. Glass washing speed: 0-8m/min
7. Working speed: 0-45m
8. Air soure (Air pressure): 0.8m3/min (1Mpa)
9. Water electrical conductivity: ≤50 uS/cm
10. Overall dimension: 19490x2100x2750 / 18630x2100x2750mm
