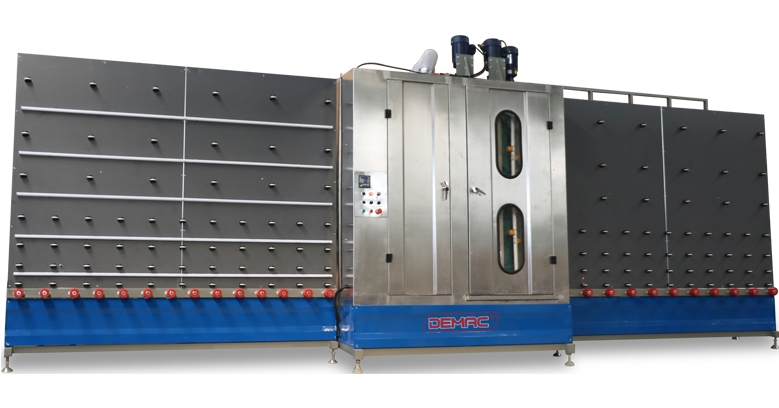

Vertical glass washing machine

Vertical glass washing machine       LBXW2500

Features:

1.Low –E glass coating surface detection and wash.
2.3 pairs of soft nylon brushes.
3.The distance between brushes is adjustable.
4.2 independent water tanks and water cycle.
5.2 stainless steel pump.
6.Water adding automatically.
7.High air press and low noise blower.
8.Air knife degree adjustable.
9.Stainless steel cover for whole washing drying section.
10.Frequency speed control.
11.Cold light inspection for output conveyor.

Technical parameter:

1.Power:22.45kw
2.Voltage:380V/50Hz
3.Max. glass size:2500x3000mm
4.Min. glass size: 200x540mm
5.Pane glass thickness:3-15mm
6.Glass washing speed: 0-7m/min
7.Water electrical conductivity: ≤50 uS/cm
8.Overall dimension:9090x2300x3400mm
